Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift
Standard Electric Aluminium Mast Lift

Standard Electric Aluminium Mast Lift

This series of products subject structure using high-strength aluminum alloy material. The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful. Its loading capacity is from 150KG to 300KG, which can load one or two man to finish aerial work. Its regular platform height is 4m, 6m, 8m, 10m etc, the max height can reach 24m.
Load capacity( kg):125-300(275-661lbs)
Lift Height (m):4-24(13-78ft)
Introduction
Accessories
Application
Introduction
Product Description

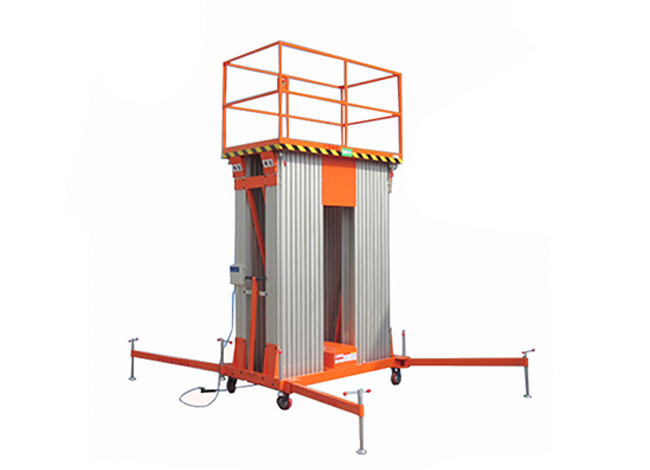

Standard Electric Aluminium Mast Lift
The aluminium aerial work platforms are designed to enhance productivity in the workplace. Flexible features on the Aluminum Mast Lift Platform offer convenience at a low cost.The power sources can be 110V 220V 380V AC power, DC power or as required.The color also can be free customized.
Introduction
Product Parameter
Product name Model Load Capacity(kg) Lift Height(m) Overall Size(m)
Single mast GTWY4-100 125-150(275lb-330lbs) 4(13ft) 1.18*0.80*1.65
GTWY6-100 125-150(275lb-330lbs) 6(19ft) 1.28*0.80*1.65
GTWY8-100 125-150(275lb-330lbs) 8(26ft) 1.28*0.80*1.98
GTWY9-100 125(275lbs) 9(29ft) 1.36*0.85*1.98
GTWY10-100 125(275lbs) 10(32ft) 1.45*0.85*1.98
Double mast GTWY6-200S 200-300(440lb-661lbs) 6(19ft) 1.30*0.80*1.65
GTWY8-200S 200-300(440lb-661lbs) 8(26ft) 1.36*0.85*1.98
GTWY10-200S 200-300(440lb-661lbs) 10(32ft) 1.54*0.90*1.98
GTWY12-200S 200(440lbs) 12(39ft) 1.66*0.97*1.98
GTWY14-200S 200(440lbs) 14(45ft) 1.66*1.10*2.38
Three mast GTWY10-320 250(551lbs) 10(32ft) 2.00*1.25*2.05
GTWY12-320 50(110lbs) 12(39ft) 2.00*1.25*2.05
GTWY14-320 250(551lbs) 14(45ft) 2.00*1.25*2.45
GTWY16-320 200(440lbs) 16(52ft) 2.20*1.25*2.45
Four mast GTWY14-420 200-250(440lb-551lbs) 14(45ft) 2.00*1.25*2.45
GTWY16-420 200-250(440lb-551lbs) 16(52ft) 2.20*1.25*2.45
GTWY18-420 200-250(440lb-551lbs) 18(59ft) 2.45*1.25*2.75
Six mast GTWY18-620 150(330lbs) 18(59ft) 2.30*1.30*2.45
GTWY20-620 150(330lbs) 20(65ft) 2.45*1.30*2.45
GTWY22-620 150(330lbs) 22(72ft) 2.65*1.50*2.80
GTWY24-620 150(330lbs) 24(78ft) 2.65*1.60*2.95
Accessories
Standard Accessories:
Light guardrail
Remote controller
Emergency drop valve
Polyurethane tires
Spirit level
Safety legs

Select Accessories:
Battery lift
AC and DC lift
Assisted walking
Explosion -proof electrical appliances
